A jackshaft opener mounts to the wall beside your garage door and requires no ceiling headroom. An overhead trolley opener mounts to the ceiling on a rail above the door. Jackshaft openers are quieter, better for low ceilings and car lifts, and cost $900–$1,200 installed. Overhead belt drive openers cost $680–$900 installed and are the better choice for standard garages. Both types offer smart home connectivity through the myQ platform on LiftMaster models.
What Is a Jackshaft (Wall-Mount) Opener?
A jackshaft opener (also called a side-mount or wall-mount opener) is a garage door opener that mounts to the wall beside the door rather than to the ceiling. It connects directly to the torsion spring shaft and opens the door by rotating the shaft — the same shaft that your torsion spring wraps around. Because it has no ceiling-mounted rail, the entire ceiling remains free for other uses.
When a North York homeowner told me he was installing a two-post car lift and asked which opener to get, I had to break some news: his existing belt drive opener had a rail running across the ceiling exactly where the lift arm needed to go. The answer was a jackshaft opener. Not every garage needs one, but when you do need it, nothing else will work. Here's how to know which type is right for you.
What Is a Jackshaft (Wall-Mount) Opener?
Standard overhead trolley openers work by pulling a trolley along a horizontal rail mounted to the ceiling. The trolley is connected to the top of the door via a J-arm. The motor sits at the front of the rail (above the door) or at the back (above the car), depending on the model.
A jackshaft opener works completely differently:
- Mounts to the wall immediately beside the door (on the wall, not the ceiling)
- Connects to the torsion spring shaft via a drive gear or sprocket system
- Opens the door by rotating the spring shaft — the same action that happens when you manually lift the door, just motorized
- Requires no rail, no trolley, and no overhead hardware
The result: your entire garage ceiling is completely free. No rail, no motor housing, nothing. Just open ceiling from front to back.

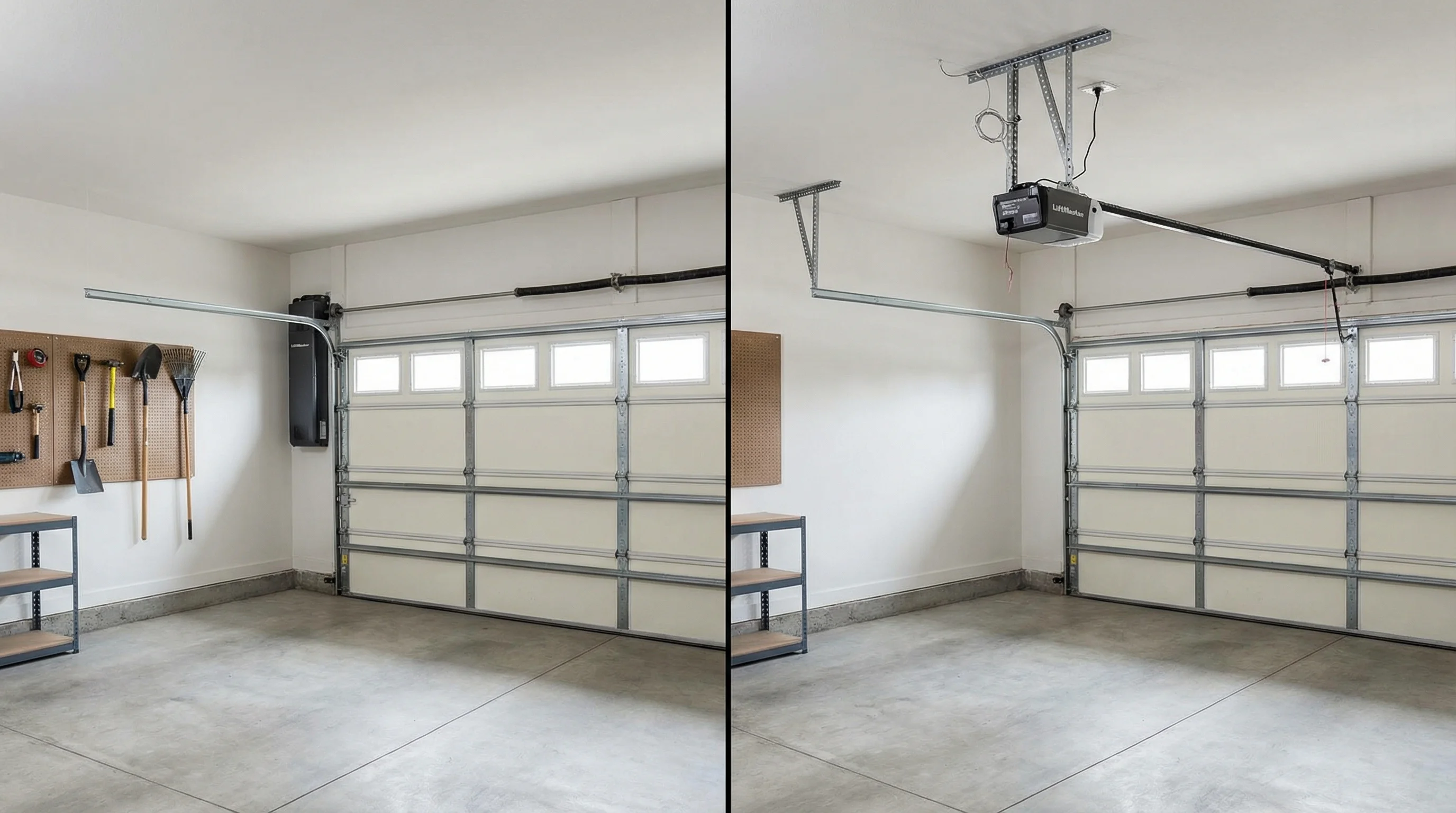

Jackshaft vs Trolley: Head-to-Head Comparison
| Feature | Jackshaft (Wall-Mount) | Overhead Trolley |
|---|---|---|
| Noise level | Very quiet (DC direct drive) | Quiet (belt) / Moderate-loud (chain) |
| Headroom needed | Zero above door | 10-12” above door top |
| Price (installed) | $900-$1,200 | $500-$900 |
| Ceiling use | Full ceiling completely free | Rail takes ceiling space |
| Compatible doors | Torsion spring sectional only | Most sectional doors |
| Motor type | DC direct drive (very efficient) | DC with belt/chain/screw drive |
| High-lift compatible | Yes | No (rail geometry issue) |
| Battery backup available | Yes (8500W) | Yes (select models) |
| Lifespan | 15-20 years | 10-15 years (varies) |
| Smart home (myQ) | Yes (built-in on 8500W) | Yes (most current models) |
Who Should Choose a Jackshaft Opener?
A jackshaft opener is the right choice when:
Low Headroom Garage
Standard trolley openers need at least 10-12 inches of clearance above the door's top panel when fully open. If your door almost touches the ceiling when open, or if the garage has very little space above the door, a jackshaft opener may be the only motorized option available.
Car Lift Installation
Two-post and four-post car lifts require an overhead rail-free environment. If you're installing a car lift, a jackshaft opener is essentially mandatory — the standard opener rail sits directly where the lift arms travel.
High-Lift Track Conversion
As covered in our high-lift conversion guide, standard trolley openers are incompatible with high-lift track geometry. If you're converting to high-lift for a car lift or tall vehicles, plan for a jackshaft opener at the same time.
Maximum Quiet Operation
If your garage is directly below a bedroom and you want the absolute quietest operation possible, the LiftMaster 8500W jackshaft is the industry standard for ultra-quiet performance. No trolley, no rail vibration, no chain or belt mechanism — just the smooth rotation of the spring shaft.
Ceiling Storage Maximization
If you want to install ceiling-mounted overhead storage racks across the full ceiling of your garage, a jackshaft opener frees you from the constraint of working around the opener rail.
Best Wall-Mount Openers for Toronto Homes (LiftMaster 8500W)
The LiftMaster 8500W is the industry standard for residential jackshaft openers in Canada and the model we install for Toronto and GTA homeowners.
LiftMaster 8500W Key Features
- DC motor: Ultra-quiet operation with soft-start and soft-stop for smooth door movement
- Battery backup: Operates during power outages without requiring a separate battery unit
- Built-in WiFi: myQ smart home platform with smartphone control, real-time alerts, and timer-to-close
- Timer-to-close: Automatically closes the door after a set time if left open
- Vacation mode: Locks out all remote access while you're away
- Capacity: Works with doors up to 14 feet wide and 8 feet tall
- Amazon Key: Compatible with Amazon in-garage delivery service
The LiftMaster 8500 (without the "W") is the non-WiFi version at a slightly lower price point, but for most Toronto homeowners the 8500W's built-in WiFi is worth the upgrade given how useful remote monitoring is during Ontario winters.
Jackshaft vs Overhead: Installation Cost in GTA
| Opener Type | Installed Price (+ tax) | Includes |
|---|---|---|
| LiftMaster 8500W (Jackshaft) | $900–$1,200 | Opener, installation, programming, 1-year warranty |
| LiftMaster Belt Drive (Overhead) | $680–$900 | Opener, rail, installation, programming, 1-year warranty |
| LiftMaster Chain Drive (Overhead) | $600–$800 | Opener, rail, installation, programming, 1-year warranty |
| Jackshaft + High-Lift Track Package | $1,400–$2,200 | Track conversion + 8500W installed |
Not Sure Which Opener You Need?
We assess your garage for headroom, door weight, and use case to recommend the right opener. We install LiftMaster jackshaft and overhead openers throughout the GTA. Free service call with any installation.
