Replacing a glass insert in a garage door costs $20-$80 DIY and takes 30-60 minutes with basic tools. Measure the frame opening, subtract 1/4 inch for the gasket, order tempered glass cut to size from a local glass shop, then remove the retaining clips or frame pieces, swap the glass, and reinstall. Call a pro if the frame is bent or the glass is decorative or laminated.
A cracked garage door window insert is one of the most common and easily solved garage repairs. If the frame is intact, you do not need to replace the entire door panel - just the glass itself. Here is exactly how to do it, including where to get the right replacement glass.
Types of Garage Door Glass Mounting Systems
Before starting, identify how your glass is held in place. The three most common systems: (1) Plastic snap-in clips around the perimeter - most DIY-friendly, (2) A removable aluminum or plastic trim frame that screws or snaps off - also easy, (3) A factory-sealed unit where glass is bonded to the frame - requires full panel replacement. Look at the interior side of the panel to identify your system.
Tools and Materials Needed
- Work gloves (cut-resistant if possible)
- Safety glasses
- Flat head screwdriver or pry tool
- Tape measure
- Marker or grease pencil
- Replacement glass or acrylic panel (tempered preferred)
- Rubber gasket or weatherstripping (if old one is damaged)
- Masking tape for broken glass control (if glass is cracked but not fallen out)
- Vacuum for glass cleanup
Step-by-Step Replacement Process
Step 1: Measure the Opening
Open the garage door to a comfortable working height and prop it safely. From inside the garage, measure the frame opening where the glass sits (the clear opening, not the outer frame). Write down width x height. Also measure the glass thickness of a remaining intact panel - typically 3mm (1/8 inch) for single pane.
Your replacement glass should be the frame opening size MINUS 1/4 inch in each dimension to allow for the rubber gasket or retaining clip clearance. So a 12x24 inch opening needs 11.75 x 23.75 inch glass.
Step 2: Order Replacement Glass
Take your measurements to a local glass shop (search "glass shop near me" or "glass cut to size Toronto"). Specify: tempered glass, 3mm (or matching your original), clear or obscure/frosted as needed. Most glass shops cut same-day for standard sizes. Cost: $15-$50 for typical garage door insert sizes.
Alternatively, Home Depot or RONA carry pre-cut plexiglass/acrylic sheets. Plexiglass is lighter and will not shatter but scratches more easily. Good budget option for single-pane window replacements.

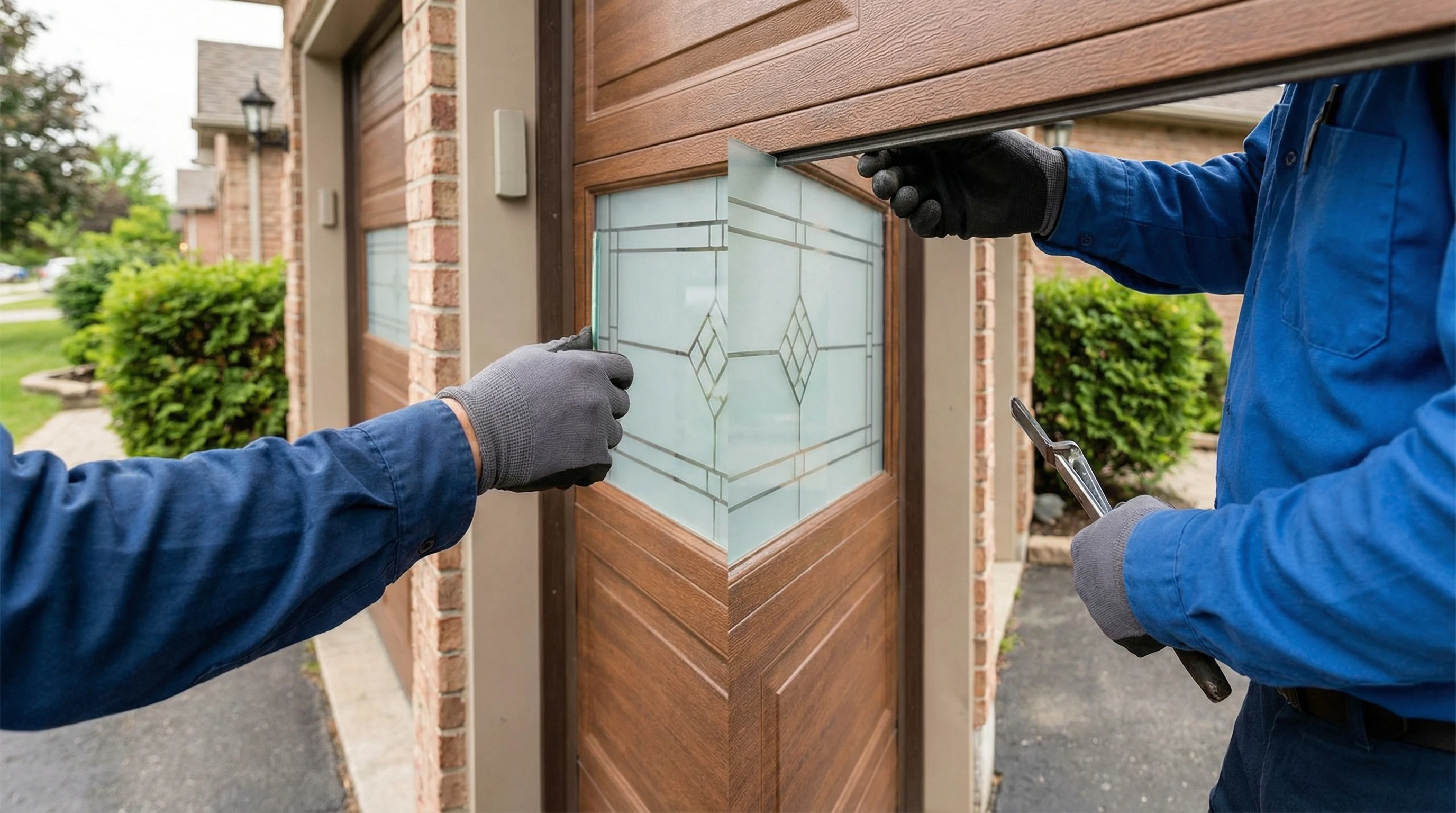

Step 3: Remove the Old Glass
For snap-in clip systems: Look for plastic clips around the perimeter of the glass on the interior side. Use a flat screwdriver to gently pry each clip outward - they snap off with moderate pressure. Work around the perimeter systematically. Carefully push the broken glass out and clean the channel with a damp cloth.
For screw-on trim frame systems: Locate screws around the interior trim frame (usually 4-8 screws). Remove all screws and set aside safely. The trim frame should lift away, releasing the glass. Remove old glass pieces and clean the opening.
Step 4: Install the New Glass
- If the rubber gasket in the channel is cracked or hard, replace it - gasket material is available at hardware stores
- For clip systems: place the new glass in the opening, then snap clips back around the perimeter starting at corners
- For screw-frame systems: place glass in opening, position the trim frame, and reinstall screws - do not overtighten or the trim frame will crack
- Inspect from both sides - glass should be flush with the frame and sealed against the rubber gasket
Step 5: Test and Inspect
Operate the garage door through 2-3 complete cycles. Listen for rattling (indicates glass not seated fully). Look for light gaps around the perimeter. Spray a small amount of water from a hose against the panel to check for water infiltration if needed.
When to Call a Professional
Call Royal Garage Doors instead of DIYing if:
- The frame surrounding the glass is bent, cracked, or damaged
- The glass insert is a decorative, frosted, or custom design that requires exact matching
- Multiple panels need replacement
- The glass is double-pane (insulated unit) - these require specialized replacement
- You are unsure about the glass mounting system
- The door panel itself is damaged (dented) around the glass area
Glass Insert Too Damaged for DIY? We Can Help.
Royal Garage Doors repairs and replaces garage door glass inserts, panels, and complete doors throughout Toronto and the GTA. If the frame is bent or you want professional installation, call for same-day service.
Call 437-265-9995 for Fast Glass RepairFrequently Asked Questions
DIY replacement costs $20-$80 for the glass panel depending on size and type. Professional replacement by Royal Garage Doors costs $80-$200 including parts and labour. If multiple panels are cracked or the door has custom decorative glass, costs increase. Replacing only the glass insert is far cheaper than replacing an entire door panel ($150-$400+).
Yes - replacing a standard glass insert is a straightforward DIY task requiring basic tools: screwdriver, tape measure, utility knife, and work gloves. The job takes 30-60 minutes. The main complexity is removing the retaining frame without cracking it and sourcing exact-size replacement glass.
Garage door glass inserts are typically single-pane tempered glass. Tempered glass is 4-5x stronger than regular glass and shatters into small, less dangerous pieces if broken. Some decorative inserts use acrylic (plexiglass) which is lighter and impact-resistant but scratches more easily. Match your replacement to the original material.
Measure the visible glass dimensions (width x height) from inside the garage. Then measure the full frame opening. Glass replacement pieces are typically cut 1/8 to 1/4 inch smaller than the frame opening to allow for the retaining rubber gasket or clips. Write down both measurements when ordering.
Sources for replacement glass: (1) Home Depot and RONA carry standard sizes in plexiglass and tempered glass, (2) Local glass shops can cut custom sizes to exact dimensions for $15-$50, (3) Door manufacturer websites sell brand-matched replacement panels, (4) Amazon for standard rectangular inserts in common sizes. Glass shops are often the fastest and most economical for custom cuts.
If the frame surrounding the glass is bent or cracked, you should replace the entire door panel section rather than just the glass. A bent frame will not hold the replacement glass securely and may allow water infiltration. Single door panel replacement costs $150-$400 depending on door brand and style.
