Dock leveler repair costs in Toronto range from $300-$800 for mechanical levelers and $500-$1,500 for hydraulic levelers, depending on the failed component. If repair costs exceed 60% of replacement cost or the unit is over 15 years old with recurring problems, replacement ($2,000-$6,000 installed) is usually the better long-term investment. Always use a qualified commercial door technician for dock leveler work — these are heavy industrial machines with serious injury potential.
What Is a Loading Dock Leveler?

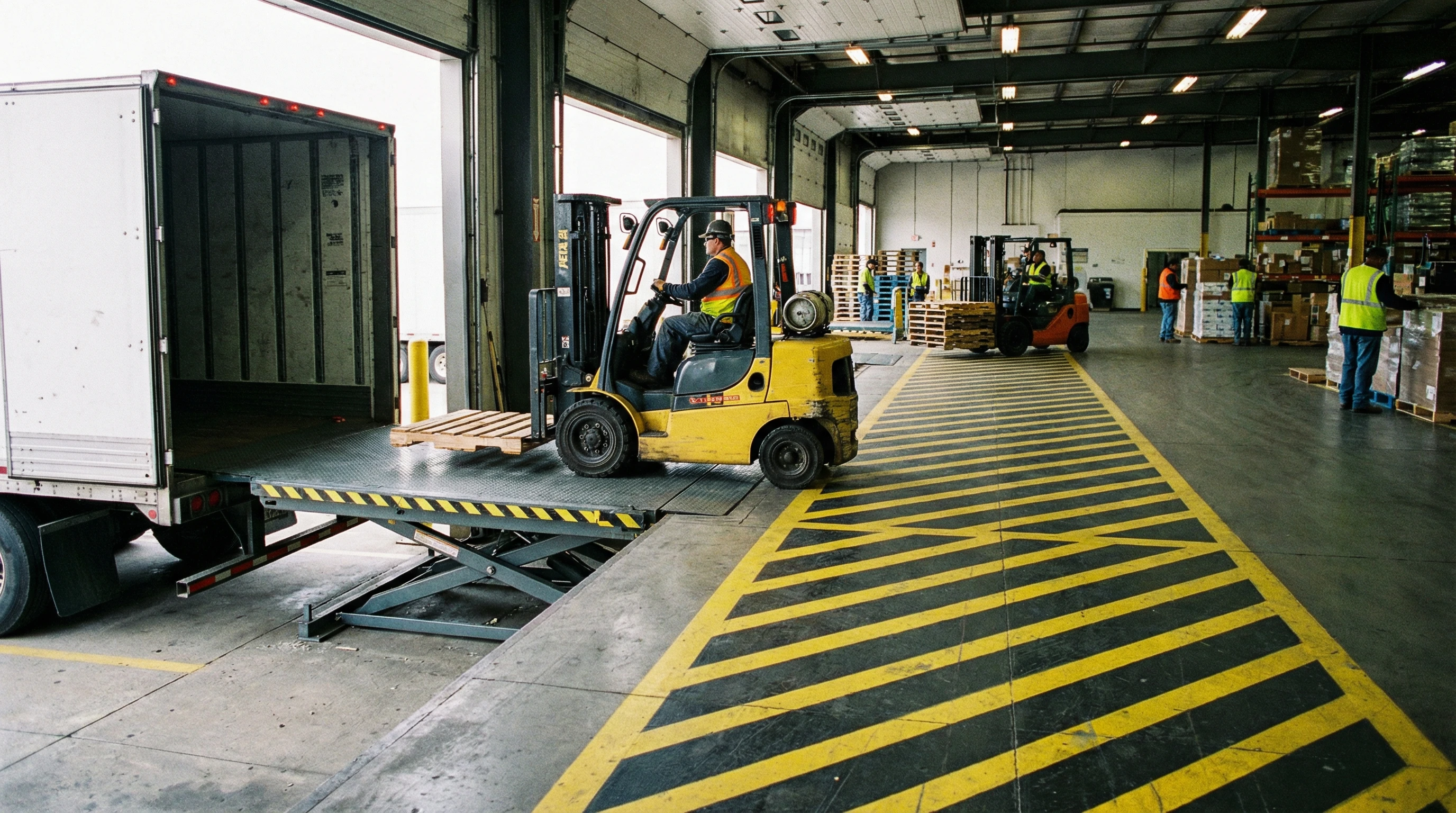

A dock leveler is a mechanical bridge installed in the loading dock pit that spans the gap between the building floor and an incoming truck bed, compensating for height differences between the dock and the trailer. They allow forklifts and pallet jacks to roll smoothly between facility and truck. The three main types — mechanical, hydraulic, and air-powered — are common throughout GTA warehouses, distribution centres, and manufacturing facilities.
A broken dock leveler can halt an entire receiving or shipping operation. In a busy GTA warehouse, that means missed delivery windows, overtime costs, and frustrated carriers. Understanding the different leveler types and their most common failure modes helps you act quickly and make informed repair-vs-replace decisions when something goes wrong.
Types of Loading Dock Levelers (Mechanical, Hydraulic, Air)
The type of dock leveler your facility uses determines both the common failure modes and the repair approach.
Mechanical Dock Levelers
Mechanical dock levelers are the most common type in older Toronto-area warehouses. They operate using a pull chain or handle that releases a hold-down spring, allowing the deck to float up to the truck height. The operator then walks onto the deck to press it down to truck level, and the lip extends automatically. Mechanical levelers are simple, reliable, and lower cost to install and repair — but they require more operator effort and training than powered alternatives.
Typical capacity: 25,000-35,000 lbs. Common brands: Rite-Hite, Serco, Kelley, Blue Giant.
Hydraulic Dock Levelers
Hydraulic levelers use a push-button control to raise the deck and extend the lip using hydraulic cylinders and a pump motor. They are safer, faster, and easier to operate than mechanical levelers — especially for high-volume facilities. Hydraulic units are more expensive to purchase and repair, but reduce worker injuries from manual operation. Most new dock installations in the GTA use hydraulic systems.
Typical capacity: 30,000-50,000 lbs. Common brands: Rite-Hite, Serco, Pentalift, Blue Giant.
Air-Powered (Pneumatic) Dock Levelers
Air-powered dock levelers use compressed air bladders or actuators to raise the deck. They are sealed units with no hydraulic fluid, making them excellent for food processing, pharmaceuticals, and clean-room facilities in the GTA. Air levelers have fewer maintenance points than hydraulic systems but require a reliable compressed air supply. They are less common than mechanical or hydraulic types.
Cold Weather Warning for Toronto Facilities
Toronto's winters are particularly hard on dock levelers. Hydraulic fluid thickens dramatically in cold temperatures, causing sluggish operation and increased pump stress. Mechanical levelers can have springs freeze in the compressed position. If your leveler is in an unheated dock, ensure it uses cold-weather hydraulic fluid and that springs are rated for Canadian climate conditions.
Most Common Dock Leveler Problems
Different leveler types fail in different ways. Here are the most frequently seen problems by category.
Mechanical Leveler Failures
- Worn or broken pull chain: The most common mechanical failure — the chain snaps or stretches, preventing deck release. Repair: $150-$300 for chain replacement.
- Faulty hold-down spring: The spring that keeps the deck in the stored position fails, causing the deck to float up unexpectedly. Repair: $200-$400.
- Lip hinge wear: The lip won't extend or doesn't hold its extended position because the hinge mechanism is worn. Repair: $250-$500.
- Deck hinge corrosion: Common in docks exposed to road salt from trucks. The main hinge corrodes and seizes, preventing deck movement. Repair: $300-$600.
- Structural damage: Forklift impact or overloading bends the deck frame. May require full deck replacement: $1,000-$2,500.
Hydraulic Leveler Failures
- Hydraulic fluid leak: Seals and fittings degrade over time, causing fluid loss. The unit becomes slow or won't raise fully. Repair: $400-$800 for seal replacement and fluid refill.
- Pump motor failure: The electric pump motor burns out, especially in cold weather. Repair: $500-$1,000 for motor replacement.
- Cylinder seal failure: The hydraulic cylinders develop internal or external leaks. Repair: $400-$900 per cylinder.
- Solenoid valve failure: The control valve that directs hydraulic flow sticks or fails. Repair: $300-$600.
- Control panel/wiring issues: Push-button controls or wiring deteriorate, especially in wet dock environments. Repair: $200-$500.
Hydraulic Dock Leveler Repair vs Mechanical
When comparing repair complexity and cost between the two main types, there are key differences every facility manager should understand.
| Factor | Mechanical Leveler | Hydraulic Leveler |
|---|---|---|
| Typical repair cost | $300 - $800 | $500 - $1,500 |
| Most common failure | Pull chain, springs | Seals, pump motor |
| Repair complexity | Lower — mechanical parts | Higher — hydraulic system |
| Parts availability | Good — standardized parts | Moderate — brand specific |
| Emergency repair time | Often same day | 1-3 days (parts sourcing) |
| Replacement cost | $2,000 - $3,500 | $3,500 - $6,000 |
| Expected lifespan | 15-20 years | 20-25 years (maintained) |
Dock Leveler Safety Inspections (Ontario Law)
Ontario's Occupational Health and Safety Act (OHSA) places clear obligations on employers to maintain loading dock equipment in safe condition. While there is no specific annual inspection certificate for dock levelers the way there is for elevators, OHSA Section 25(1)(b) requires employers to ensure "equipment, materials and protective devices" are maintained in good condition.
In practice, this means:
- Dock levelers must be inspected regularly and deficiencies corrected promptly
- Workers must be trained in proper dock leveler operation
- Defective equipment must be taken out of service until repaired
- Maintenance records should be kept and available for Ministry of Labour inspection
MOL inspectors have the authority to order dock levelers out of service if they are found to be unsafe. Operating a defective dock leveler that causes a worker injury can result in significant OHSA fines for the employer. The recommended practice is to conduct a formal dock safety inspection at least annually by a qualified technician, with a written report documenting the condition of each leveler.
Dock Leveler Repair Cost in Toronto
Here are realistic cost ranges for dock leveler repairs and replacements in the Toronto and GTA market.
| Service | Cost Range (+ tax) | Notes |
|---|---|---|
| Mechanical leveler repair (minor) | $300 - $500 | Chain, spring, or lip adjustment |
| Mechanical leveler repair (major) | $500 - $800 | Hinge, frame, or structural repair |
| Hydraulic leveler repair (minor) | $500 - $800 | Seal kit, solenoid, wiring |
| Hydraulic leveler repair (major) | $800 - $1,500 | Pump motor, cylinder replacement |
| Annual safety inspection | $150 - $300 | Written report included |
| New mechanical leveler (installed) | $2,000 - $3,500 | Pit work may add cost |
| New hydraulic leveler (installed) | $3,500 - $6,000 | Electrical connection required |
| Emergency after-hours service | $500 - $1,200+ | Premium rates apply |
See exact pricing: Visit our complete pricing page for up-to-date Toronto rates on all services.
